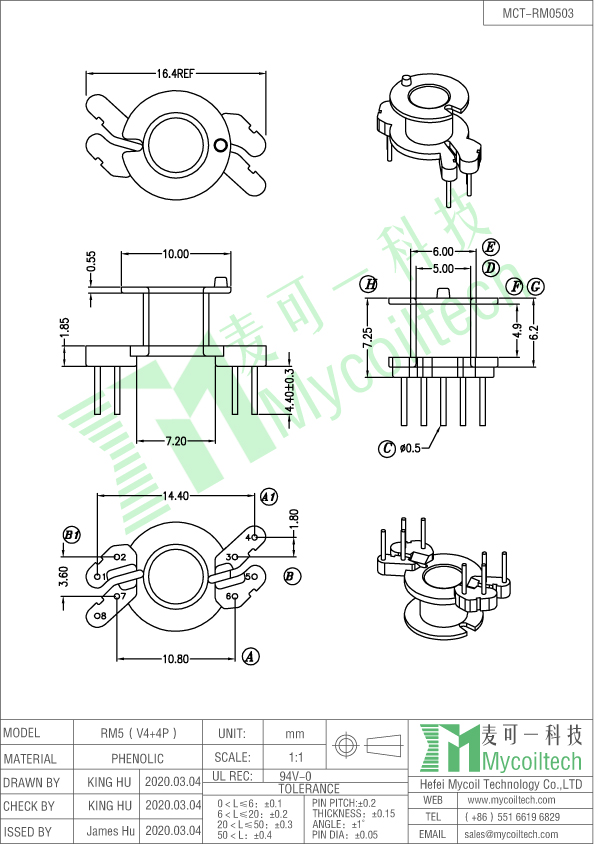

4+4 pins RM5 DIP bobbin, vertical RM5 single slot transformer bobbin. Phenolic material RM5 transformer frame. Bobbin Size=16.4mmX10.0mmX7.25mm. Parallel Distance=10.8mm. Parallel Distance=14.4mm. RM5 transformer with strong anti-interference and attenuation of low transmission, we accept customized RM5 electronic transformer.
brand:
MCTitem no.:
MCT-RM0503shipping port:
Shanghaipayment:
T/T in advanceVertical RMB5 transformer frame, 4+4 pins RM5 coil former, supply matched ferrite cores.
Product Specification
If you are interested in our items, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
RM6 Power Supply Transformer Bobbin with 2+2Pins
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17.1mmX12.3mmX8.9mm
Vertical RM6 High Frequency Transformer Bobbin with 2+2Pin Double Slots
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17mmX12.3mmX8.9mm, Pin Dia=0.5mm
PCB Mounting RM6 Transformer Bobbin
RM6 led drive transformer bobbin, 4+4 pins vertical coil bobbin, coil former size=20.9mmX12.3mmX8.9mm,Pin Dia=0.5mm, Phenolic Material,UL REC:94V-0, DIP Bobbin, accept customized RM6 small electronic transformer.
RM6 Vertical Bobbin for Household Ferrite Core,with 4+4 Pin Double Slots
4+4 Pins Vertical Bobbin. Double Slots Bobbin. Bobbin Size=20.9mmX12.3mmX8.9mm. Phenolic Material, DIP transformer Bobbin. UL REC:94V-0
Switching Power Suppy RM6 Bobbin, 5pin Vertical type
5+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=16.1mmX13mmX11.65mm
RM6 High Frequency Transformer Vertical Bobbin
RM6 ferrite core bobbin, 3+3 Pins vertical RM6 coil bobbin, DIP Bobbin,Pin Pitch=2.55mm,Size=20.9mmX12.3mmX9mm. Phenolic Material, RM6 transformer used for led lighting, UPS, SMPS, computer, main power transformers.
RM6 4+7 Pins High Frequency Transformer Bobbin, Phenolic Material
4+7 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=25.39mmX12.3mmX8.4mm
4 Pins Ferrite Core Vertical RM6 bobbin
4+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Pin Pitch=2.54mm,Size=15.6mmX10mmX9.8mm
Vertical RM6 Transformer Bobbin 3+3 Pins Double Slots Bobbin
3+3 Pins Double Slots Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
Vertical RM6 Switching Power Transformer Bobbin
3+3 Pins DIP Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
RM6 Bobbin for Power Charge High Frequency Transformer
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Double Slots Bobbin,Size=20.5mmX12.1mmX8.7mm
Vertical RM6 High Frequency Ferrite Core Bobbin
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Size=20.5mmX12.2mmX9.1mm
